Prong Magnets - for Liquid Flow


Prong Magnetic separators are manufactured as per customers need for heavy-duty large volume liquid and semi-liquid line flow systems. Prong Magnets employs a slip-in cage of stainless steel permanent magnet tubes. The function of the magnet tubes is such that the captured tramp metal particles migrate to the rear of the tubes where they remain protected from wash-off until the tubes are cleaned. It reduces damages and maintenance to filters, pumps, and other processing machinery handling paper, chemical, slurries, ceramic slurries and other liquid materials.

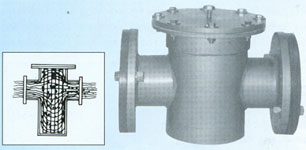

Prong Magnets for Liquid Flow

Rugged welded pipe and reinforced plated construction with stands high working pressure. Magnetic element provided with non-magnetic area at bottom for easy cleaning. Shutdowns can be avoided by providing bypass to divert flow during cleaning. Having a top access bolt on steel plate and seal, Prong Magnet is easy to clean. With the top removed the magnet cage is simply lifted out, wiped, clean and reinstalled. Available as per customers requirement.

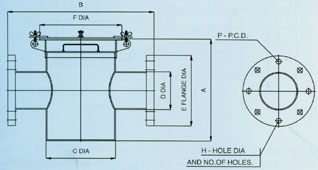

Prong Magnets for Liquid Flow Application


      Manufacturers of Prong Magnets for Pipelines - Liquid Flow Systems in India.
