High Intensity Roller Type Magnetic Separator


We have specially developed High Intensity, High gradient, Permanent Magnetic Roller Separators with the Indigenously Developed Technology. Which has been used successfully in various Industries Specially Minerals. The Machine incorporates high energy Rare Earth Neodymium Permanent Magnetic Roll Assembly, which is manufactured and assembled under strict quality control and specification. Under High Intensity Magnetic Field, Magnetic Contamination can be easily removed efficiently.   High Intensity Roller Type Magnetic Separator

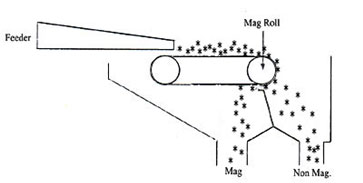

Operating Principle

High Intensity Roller Type Magnetic Separator Operating Principle
  A short conveyor belt envelopes the Magnetic Roll and a tensioning Ideal Roll. A Suitable Feeder discharges material on the Belt. The Ferrous Material adhere to the Belt while the non Ferrous Material flow freely off the end of the conveyor.



High Intensity Roller Type Magnetic Separator - Features


Magnetic Rolls are available in various diameters & widths, they are normally manufactured as per requirement to suit every customer's need. In three different Magnetic Strengths 8,000 Gauss, 20,000 Gauss and 22,000 Gauss. A 0.5 HP, variable speed DC/AC Geared Motor drive adjustable from 0 to 100 RPM Drives the Roll. Vibratory Feeder with Controls provided for Feeding. Abrasion resistant endless conveyor Belts with thickness of 0.8mm is provided for the Machine.



High Intensity Roller Type Magnetic Separator - Applications


Our machines are most useful in various types of industrial Minerals applications, such as Abrasive, Refractory and Ceramic, Alumina, Silica, Carbide, Magnesite, Quartzite, etc. Glass Raw Materials Cleaning Silica sand, Quartz, Feldspar, Dolomite, etc. Ultra High Purity Quartz Cleaning. Graphite Upgrading, Mangense ore Beneficiation, Bauxite Upgrading, Diamond ore Beneficiation, Selective Separation of Garnet / Ilmenite / Rutile, Zircon, Beneficiation of Iron ore, recovery of Metals from Slag, Removal of Ferro Silicates from Limestone, Magnesite, etc.


     Manufacturer of Roller Type Drum Separator / High Intensity Roller Type Drum Separator India.
